Timers

Timers let agents schedule future events. An agent can set one-time reminders, recurring tasks, or cron-based schedules.

Overview

Timers are stored in the adf_timers table and managed through the sys_set_timer, sys_list_timers, and sys_delete_timer tools. All three timer tools are disabled by default — request them via sys_update_config (tools.sys_set_timer.enabled etc., HIL-gated: your principal approves). When a timer fires, it delivers its payload to the configured scope handlers — but only if the corresponding on_timer trigger is enabled.

Scheduling Modes

Each timer uses a schedule object with a type field that selects the scheduling mode. Fields irrelevant to the selected type are silently ignored.

One-Time (Absolute)

Fire once at a specific timestamp.

sys_set_timer({
  schedule: { type: "once", at: 1707300300000 },
  scope: ["agent"],
  payload: "check_results"
})

One-Time (Relative)

Fire once after a delay from now. The runtime converts this to an absolute timestamp on creation.

sys_set_timer({
  schedule: { type: "delay", delay_ms: 300000 },
  scope: ["agent"],
  payload: "follow_up"
})

Interval

Fire repeatedly at a fixed interval.

sys_set_timer({
  schedule: { type: "interval", every_ms: 3600000 },
  scope: ["system"],
  payload: "health_check"
})

Optional fields for interval timers:

sys_set_timer({
  schedule: { type: "interval", every_ms: 30000, max_runs: 100 },
  scope: ["system"],
  payload: "poll_status"
})

Cron

Fire on a cron schedule using standard 5-field cron expressions.

sys_set_timer({
  schedule: { type: "cron", cron: "0 9 * * 1-5" },
  scope: ["agent"],
  payload: "daily_report"
})

Optional fields for cron timers:

Cron Expression Reference

┌───────────── minute (0-59)
│ ┌───────────── hour (0-23)
│ │ ┌───────────── day of month (1-31)
│ │ │ ┌───────────── month (1-12)
│ │ │ │ ┌───────────── day of week (0-6, Sunday=0)
│ │ │ │ │
* * * * *

Common examples:

Shared Fields

All scheduling modes support these fields:

Timers own their execution config — the lambda and warm fields are stored on the timer itself, not inherited from trigger targets. The on_timer trigger config serves purely as a kill-switch gate.

Timer Lambda Execution

When a timer fires in system scope with a lambda field, the runtime executes that lambda function in the sandbox environment.

sys_set_timer({
  schedule: { type: "interval", every_ms: 60000 },
  scope: ["system"],
  lambda: "lib/monitor.ts:checkHealth",
  warm: true,
  payload: "health_check"
})

Timer Event Object

The lambda function receives an AdfEvent<'timer'>. The event data contains the full Timer row — same shape as sys_list_timers returns.

Example: Health Check Timer

// lib/monitor.ts
export async function checkHealth(event) {
  const start = Date.now()

  // Check inbox backlog
  const counts = await adf.msg_list({})
  const unread = JSON.parse(counts).unread ?? 0

  // Check loop size
  const config = await adf.sys_get_config({})

  // Log the health check
  await adf.db_execute({
    sql: 'INSERT INTO local_health_log (ts, unread, payload) VALUES (?, ?, ?)',
    params: [Date.now(), unread, event.data.timer.payload]
  })

  // Alert if inbox is backing up
  if (unread > 50) {
    await adf.msg_send({ recipient: 'did:adf:ops...', address: 'http://127.0.0.1:7295/agents/ops/inbox', payload: `Health alert: ${unread} unread messages` })
  }

  return { ok: true, duration_ms: Date.now() - start }
}

Shell Script Timers

The lambda field can also point at a .sh shell script:

sys_set_timer({
  schedule: { type: "cron", cron: "0 * * * *" },
  scope: ["system"],
  lambda: "jobs/task.sh"
})

The script runs headlessly through the shell runner — no JS shim. Unlike .ts:function lambdas, which receive the event object as an argument, shell scripts receive event context as environment variables: $EVENT_TYPE, $TIMER_ID, $TIMER_PAYLOAD, etc.

Cold vs. Warm Execution

By default, timer lambdas use cold execution — a fresh sandbox worker is created, the lambda runs, and the worker is destroyed. This is safe and isolated but has startup overhead.

Set warm: true on the timer to use warm execution — the worker stays alive between invocations. This is faster for frequently-firing timers (e.g., polling every few seconds) but uses more memory. All warm timer/trigger lambdas for an agent share the sandbox ID {agentId}:lambda.

See Code Execution > State Persistence and Triggers > Cold vs. Warm Execution for more details.

adf Access

Timer lambdas have full access to the adf proxy object — all enabled tools, model_invoke, and sys_lambda are available.

Timer Scope and Trigger Interaction

For a timer to actually execute, two conditions must be met:

1. The timer’s scope includes a matching scope (e.g., "agent")
2. The on_timer trigger is enabled (triggers.on_timer.enabled) and has a target with the matching scope

This dual-check means you can disable all timers of a scope by toggling the trigger — without deleting the timers themselves.

Target loop

An agent can run several named loops — see Inner Loops. A timer may name which one it wakes, with a loop field; an absent loop means main, so every pre-loops timer routes exactly as it did.

The loop stamp is agent-scope only. Naming a loop only means something for the part of a timer that wakes a loop:

• scope: ["agent"] — the loop is honoured; the wake reaches that stream.
• scope: ["system"] — the lambda runs through the single agent-wide system handler, under main’s authority, and wakes no loop. Such a timer carries no loop stamp; a loop passed with it is dropped.
• scope: ["system", "agent"] — the timer keeps its loop for the agent half; the system half still runs under main’s authority.

The strip is enforced once, at the workspace chokepoint (addTimer), so it holds for every caller — Studio, sys_set_timer, or any other path. Studio hides the Loop selector when you pick system scope.

Inner loops themselves are more constrained: a timer set from inside one always wakes that loop (the row is stamped with it, and passing loop from a loop is refused), and an inner loop can create neither a system-scope lambda timer nor a locked timer. It asks main for those, with loop_send.

Timer Lifecycle

Timers are polled on a 5-second tick — the runtime wakes every 5s, collects every row whose next_wake_at has passed, settles it, then fires. Two consequences: schedules shorter than 5s are meaningless (the tick is the real floor), and any fire can land up to 5s late.

When a timer fires:

1. Due rows are settled first, before firing — one-shot/exhausted timers are flagged expired = 1; recurring ones have next_wake_at advanced in place. (Settling first means a crash mid-fire cannot refire the batch on the next tick.)
2. run_count is incremented and last_fired_at is updated
3. Payload is delivered to scope handler(s) that pass the dual-check
4. One-time / exhausted timers are NOT deleted — they are flagged expired = 1 and kept as history. getDueTimers selects only expired = 0 rows, so an expired timer never fires again.
5. Interval/cron timers: next_wake_at is recomputed and the row updated in place. The timer is flagged expired (not deleted) once max_runs is reached or end_at has passed.

System Timer With No Lambda

A scope: ["system"] timer with no lambda is a silent no-op trap: at each fire it does nothing but log an info entry System timer #<id> fired but no lambda — skipped. It still counts as a fire (advances run_count/next_wake_at), so a recurring system timer with no lambda just burns ticks. Give system timers a lambda, or use scope: ["agent"] to wake the loop.

Missed Timers

If the runtime loads an ADF with past-due timers (e.g., the app was closed), catch-up behavior depends on the timer type:

This prevents a flood of catch-up fires. However many intervals were missed, the timer fires once and gets back on schedule from the current time.

Timer Storage

The adf_timers table stores each timer’s schedule, scope, and execution config:

The schedule_json column stores the resolved schedule. The stored shape differs from the tool input: the persisted discriminator key is mode (the sys_set_timer input uses type), and cron’s expression is stored under cron (not expr). There is no stored delay mode — a delay input is resolved to a one-time schedule at creation, persisting as { "mode": "once", "at": <now + delay_ms> }. delay never appears in a stored row.

// One-time (also how a `delay` input is persisted, with at = now + delay_ms)
{ "mode": "once", "at": 1707300300000 }

// Interval (optional keys omitted when unset)
{ "mode": "interval", "every_ms": 3600000 }

// Cron
{ "mode": "cron", "cron": "0 9 * * 1-5" }

Managing Timers

Creating Timers in the UI

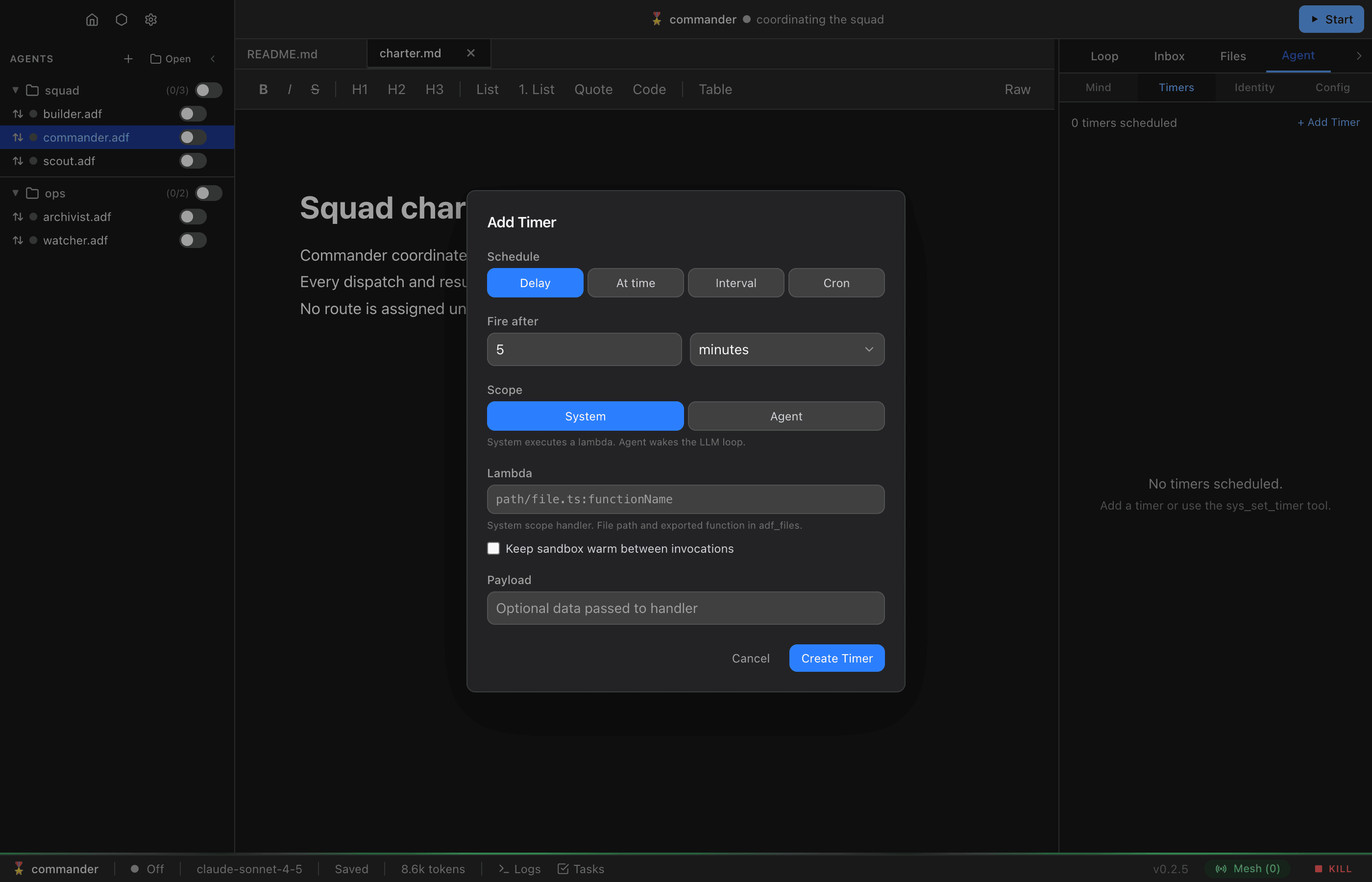

The Agent > Timers tab includes an Add Timer button that opens a modal for creating timers without using tool calls. The modal lets you:

• Select a schedule mode (delay, absolute time, interval, or cron)
• Toggle scope between system and agent (or both)
• Specify a lambda entry point and warm flag for system scope
• Set an optional payload string

Listing Timers

Use sys_list_timers to see all active timers with their schedules, next fire time, and run count. By default only active timers are returned; pass sys_list_timers({ include_expired: true }) to also list completed (expired) timers, which are retained as history. You can also view timers in the Agent > Timers tab in the UI.

Deleting Timers

Use sys_delete_timer(id) to cancel and remove a timer. In the UI, timers can be deleted from the Timers tab.

Common Patterns

Health Check Every Hour

sys_set_timer({
  schedule: { type: "interval", every_ms: 3600000 },
  scope: ["system"],
  payload: "health_check"
})

System scope script handles the check cheaply without waking the LLM.

Daily Report (Weekdays)

sys_set_timer({
  schedule: { type: "cron", cron: "0 9 * * 1-5" },
  scope: ["agent"],
  payload: "daily_report"
})

Agent wakes at 9 AM on weekdays to generate a report.

One-Time Reminder

sys_set_timer({
  schedule: { type: "delay", delay_ms: 1800000 },
  scope: ["agent"],
  payload: "Check if the deployment completed"
})

Agent gets a reminder in 30 minutes.

Limited Polling

sys_set_timer({
  schedule: { type: "interval", every_ms: 60000, max_runs: 10 },
  scope: ["system"],
  payload: "poll_api"
})

Poll every minute, stop after 10 attempts.
